Single-column Screen Changer

• The single-column double-station filter channel can work alternately, allow for quick screen changing and easy production & maintenance.

• When the filter board is in production and reaches the predetermined pressure, the screen can be hydraulically changed.

• The filter board filter channel has a split design to ensure no dead angle. The filter area is more than one time of the ordinary filter’s, contributing to a longer screen change interval. Fit for application in the production of heat sensitive materials such as PVC which are prone to buildup.

• With the help of hydraulic system, the slag on the filter screen is quickly pushed out of the working position, the melt around the filter screen hole is quickly cleaned and the filter screen is replaced.

• Employ automatic adjustment sealing device to ensure a sealing performance of 99%; Meet the requirement for high-output extrusion production of any raw material, and can be used together with different standard extruders.

• The filter plate is equipped with detachable device to facilitate removing of cold material in the filter hole, so that the product is not affected by the cold material flow, contributing to higher product consistence.

• Start the exhaust control system when changing the screen to effectively solve the bubble problem.

• The quick change time of single-column double-station changer is ≤ 2 seconds, and the filter area is optional from ¢30mm to ¢350mm.

• High wear resistance, high pressure resistance, high precision filter design, improved effective area and filtration quality.

• Best performance under the pressure 25-30Mpa and temperature about 300°C.


Application

• Almost all fluid polymers are fit for screen changers, such as: bellows, tubing, PVC, PC, PMMA, PET, PS, PU, PP, PE, EVA, ABS, etc.

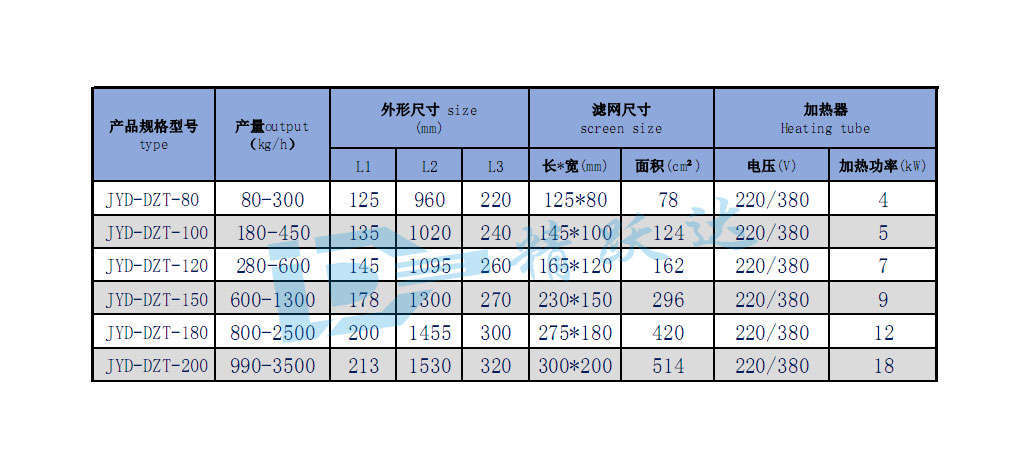

Parameter


Application

• Almost all fluid polymers are fit for screen changers, such as: bellows, tubing, PVC, PC, PMMA, PET, PS, PU, PP, PE, EVA, ABS, etc.

Parameter
